How to distinguish the specification and model of hydraulic hose connector?

Hydraulic hose connector is mainly a connector used on various hydraulic mechanical equipment. Modern industrial automation is developing rapidly. Hydraulic pipeline is an important part of automation equipment. The hydraulic hose connector at the connection will inevitably leak due to aging or damage after use. At this time, it is necessary to replace a new connector to make the entire equipment pipeline work normally.

As a maintenance part, the hydraulic hose connector itself needs to be repaired and replaced in a timely manner. If you don't know the connector well, you can't better determine the model code of the connector. Let's introduce the common standards and codes of the hydraulic hose connector.

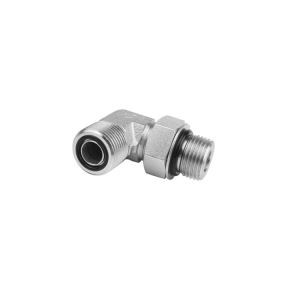

Angle bend transition joint code: add "4" after the straight transition joint model to indicate 45 ° bend transition joint, and add "9" after the straight transition joint model to indicate 90 ° bend transition joint, such as 1BG9-04OG, 1JT4-08-06SP, etc.

Code of three-way crossover joint Tee, three-way crossover joint model+left end mark+middle end mark+right end mark+material code.

Four-way transition joint code Four-way transition joint model+mark+material code. Generally, four ends of four-way transition joint are the same, so only one mark is noted. If the four ends are different, the first group represents the left end, the second group represents the upper end, the third group represents the right end, and the fourth group represents the lower end.
